CraftRack
1 / 5
| RD-52# 200KG (40HQ / 425 Sets) | |
|---|---|

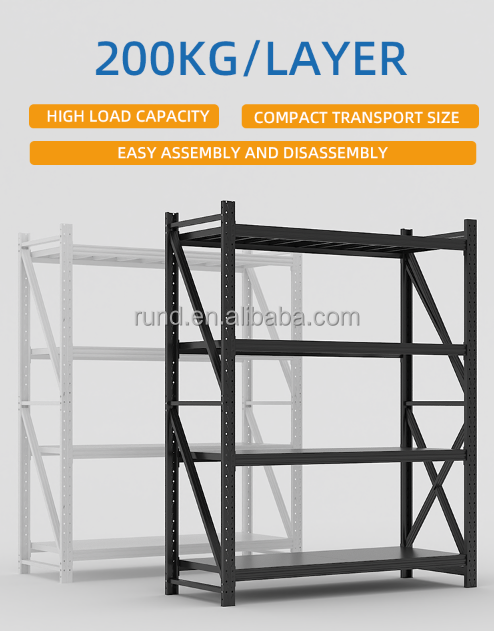

| Load capacity | 200KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour | Gray white / Sand blue / Customizable |
| Specifications | Length: 2000 mm | Width: 600 mm | Height: 2000 mm |
| Features | Removable shelves reduce the packaging volume while maintaining the same load-bearing capacity, saving a lot of transportation costs and improving product competitiveness. |

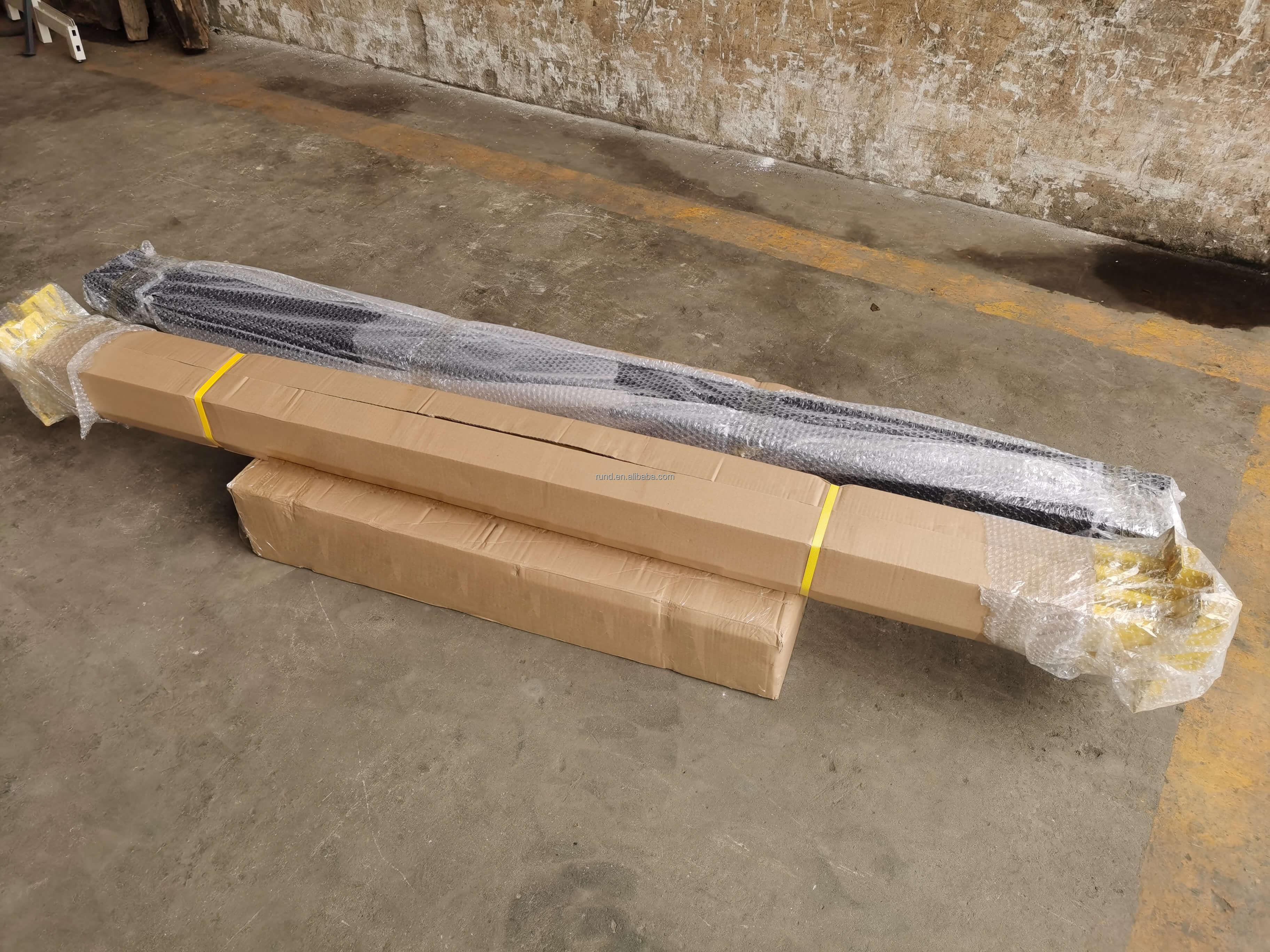

| 40HQ Loading | A 40HQ high container can accommodate 425 sets of 200kg shelves. With a carefully designed structure, it is possible to reduce the packaging volume by 40% while maintaining the same load-bearing capacity. |
| Load Capacity (KG) | Laminate Thickness | Column Specification | Crossbeam Specification |
|---|---|---|---|
| 100KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with the following three tips:
We make excellent quality, unique design, practical function, and enough variety as the selling point. The company won the trust and support from our extensive customers.
For the purpose of "Integrity management, keep improving and innovative, win-win cooperation, professional production, high quality at low price, service first."
